126-6648 Controller ECU 1266648 for 950F Wheel Loader

Informations de base
Lieu d'origine: Chine
Nom de marque: Jiajue
Numéro de modèle: 950F
Quantité de commande min: 1 pièce
Prix: $800/pc
Détails d'emballage: Le contrôleur ECU 126-6648 1266648 pour chargeuse sur pneus 950F est emballé dans un emballage stand
Délai de livraison: 1-5 jours de travail
Conditions de paiement: LC, D/A, D/P, T/T, Western Union
Capacité d'approvisionnement: 100 pièces/mois
Détail Infomation
Nom du produit: 126-6648 Contrôleur ECU 1266648 pour chargeuse sur pneus 950F Matériel: Acier
Lieu d'origine: 2,5 mm MOQ: 1
OEM: Soutien
Mettre en évidence:

950F Wheel Loader ECU Controller

,

126-6648 Controller ECU

,

ECU Controller for 950F


Description de produit

Controller ECU 126-6648 for 950F Wheel Loader

High-quality replacement controller ECU designed specifically for 950F Wheel Loader applications, ensuring reliable performance and compatibility.

Product Specifications
Product Name Controller
Part Number 126-6648
Brand Name JIAJUE
Model 950F
Condition Used
Availability Rich Stock
Approximate Weight 2KG
Size (per unit) 35cm x 20cm x 8cm
Delivery Time Usually delivered within 1-3 days after payment

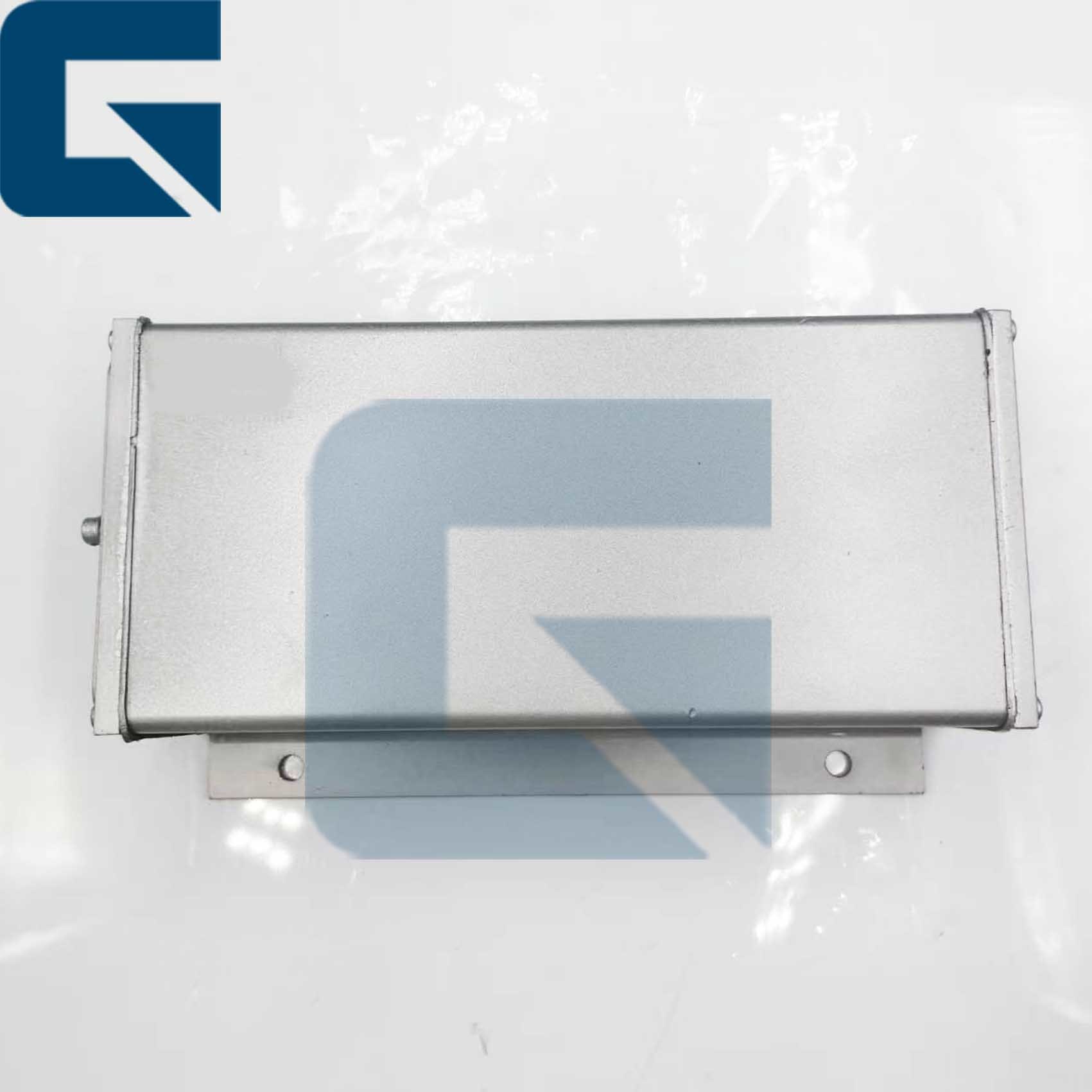

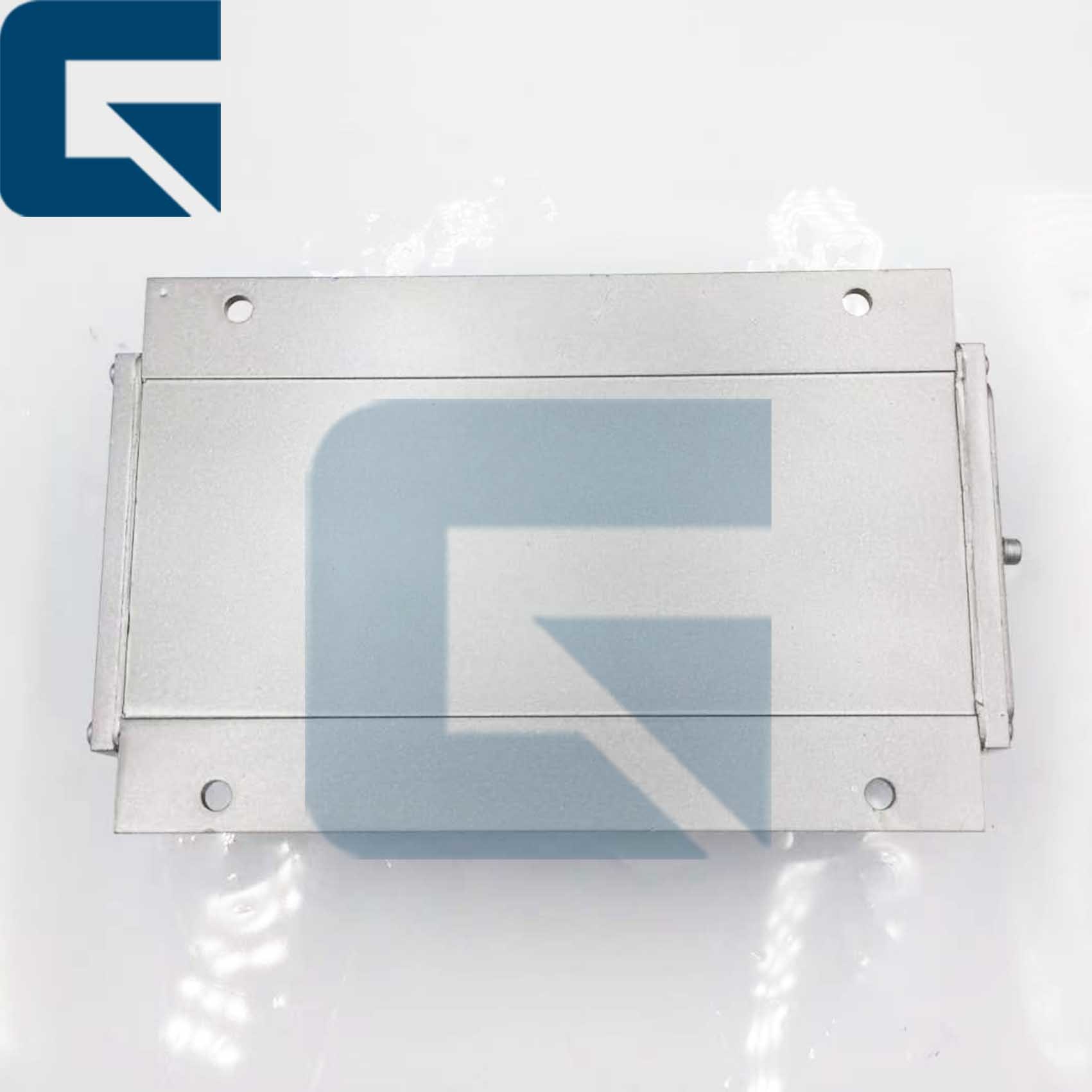

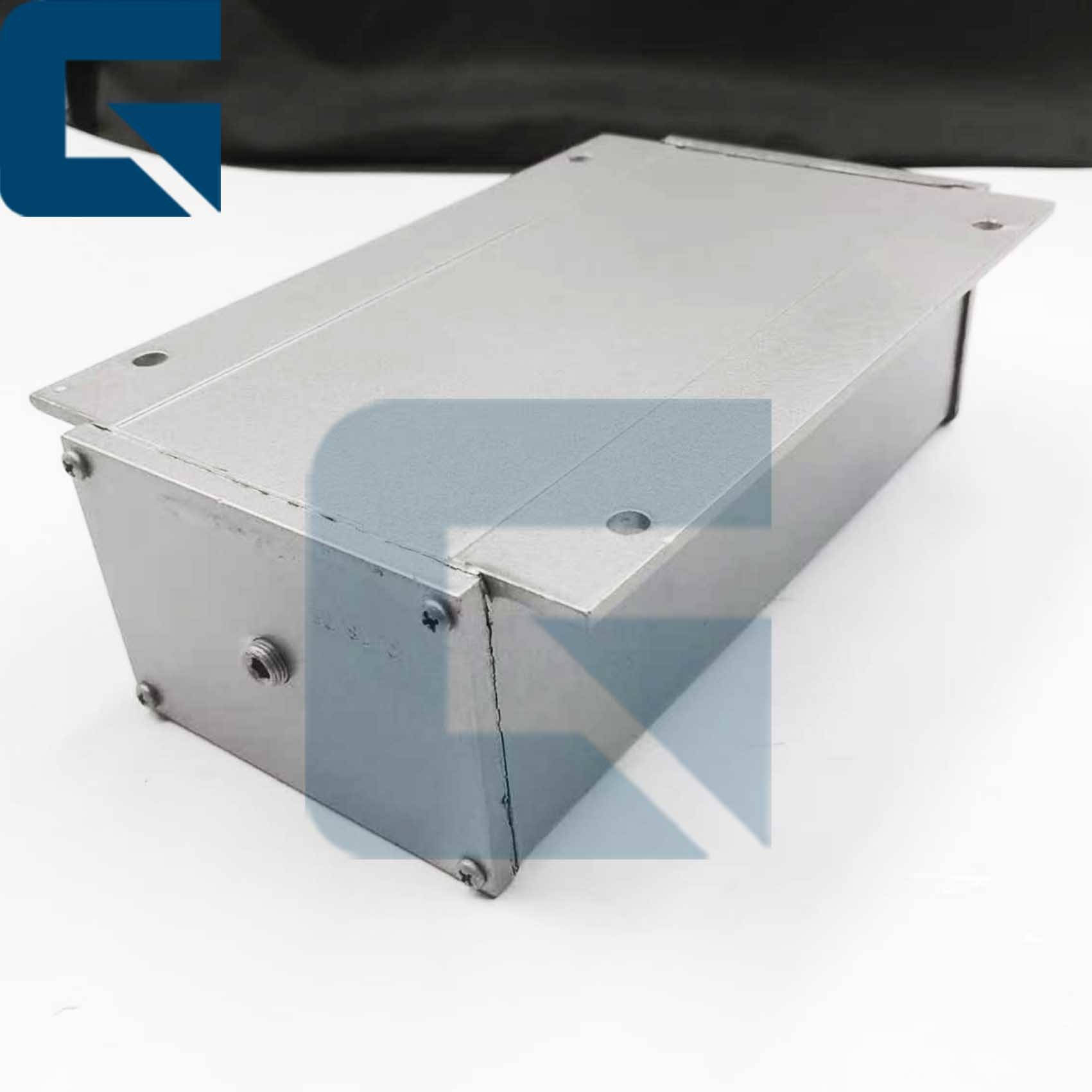

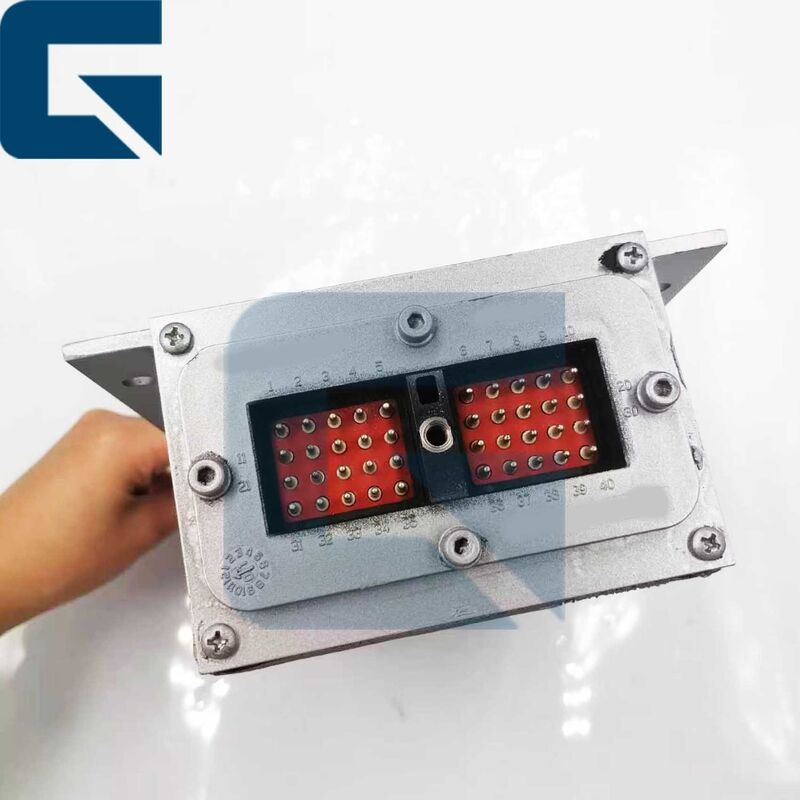

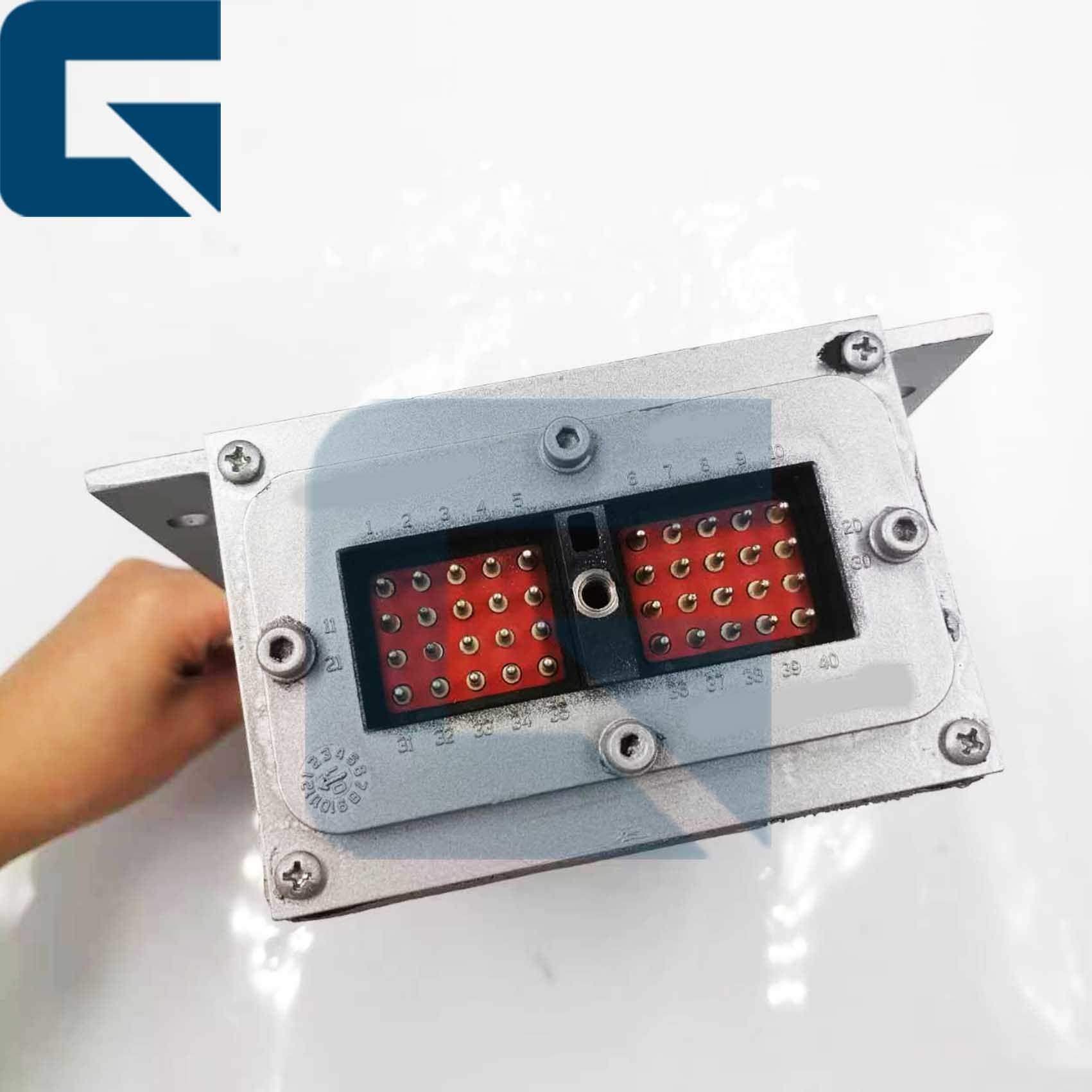

Product Images
126-6648 Controller ECU 1266648 for 950F Wheel Loader 0 126-6648 Controller ECU 1266648 for 950F Wheel Loader 1 126-6648 Controller ECU 1266648 for 950F Wheel Loader 2 126-6648 Controller ECU 1266648 for 950F Wheel Loader 3
Related Products
126-6648 Controller ECU 1266648 for 950F Wheel Loader 4
Frequently Asked Questions
Installation Time for ECM on Machine

Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.

Programming & Testing: 30-60 minutes.

Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need a Cat ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.
Determining ECM Fault and Replacement Need
  • The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
  • Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
  • Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
  • Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.
Payment Methods

Our payment methods include T/T, L/C, PayPal, etc.

Stock Availability

Rich stock available.

Order Shipping Information

When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.

Step-by-Step Testing Guide
Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
  2. Inspect: Check the ECU for physical damage or loose connections.
  3. Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
  4. Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
  5. Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
  6. Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
  7. Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
  8. Document: Keep a record of all tests, codes, and results for future reference.
Quick Checklist for Buyers
Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.
