Détail Infomation

Nom du produit:	Contrôleur ECU 14390248 VOE14390248 pour pelle EW160B EW180B	Matériel:	acier
Lieu d'origine:	Guangdong, Chine	MOQ:	1
OEM:	Soutien
Mettre en évidence:	ECU controller for EW160B excavator , excavator ECU controller 14390248 , EW180B excavator controller with warranty

Description de produit

VOE14390248 Controller ECU for EW160B/EW180B Excavators

High-quality 14390248 ECU controller specifically engineered for engine applications in EW160B and EW180B excavators. This precision component ensures optimal performance and reliability in demanding industrial environments.

Product Specifications

Product Name	Controller ECU
Part Number	14390248
Brand Name	JIAJUE
Condition	New
Availability	Rich Stock
Approximate Weight	3KG
Size (per unit)	30cm x 25cm x 10cm
Delivery Time	Usually delivered within 1-3 days after payment

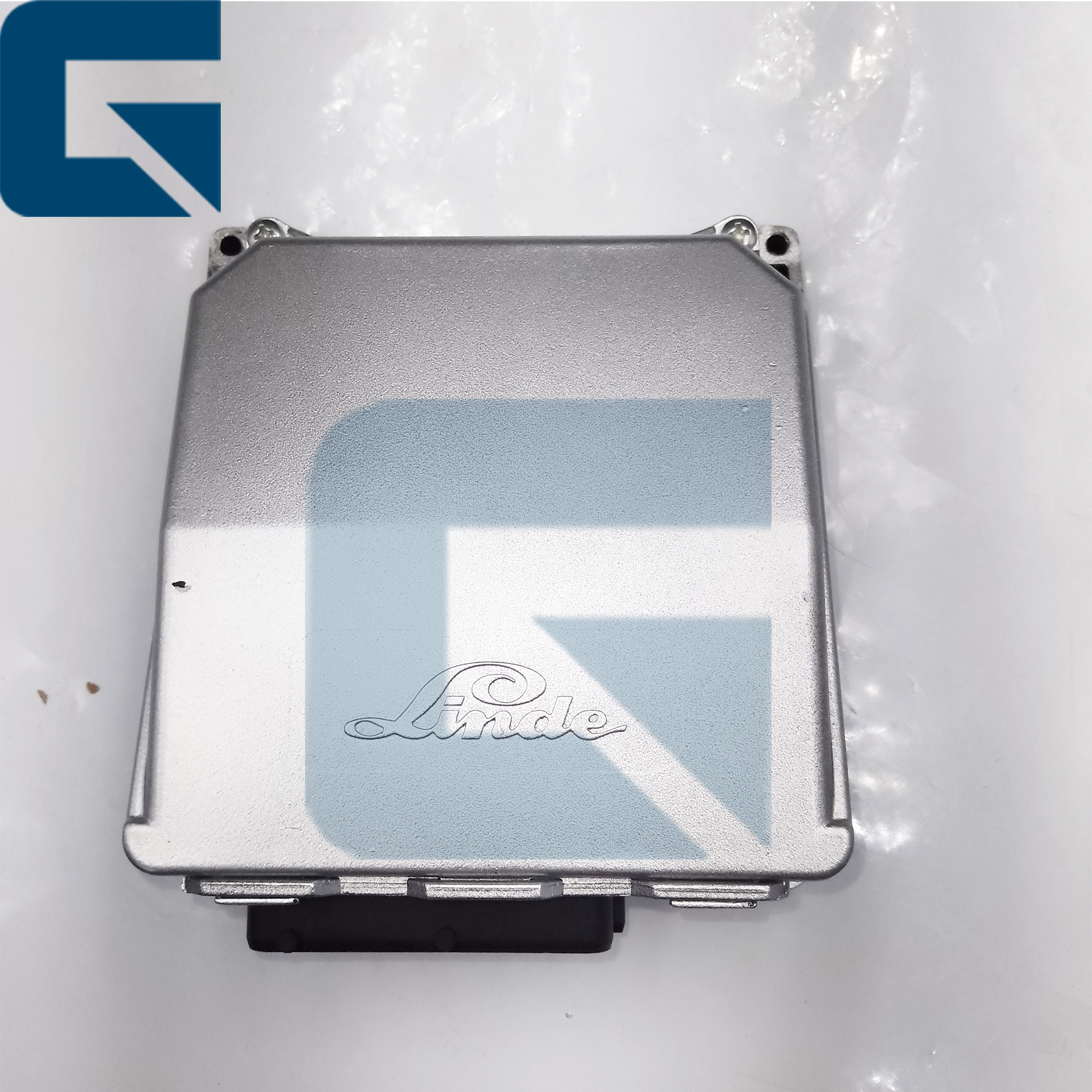

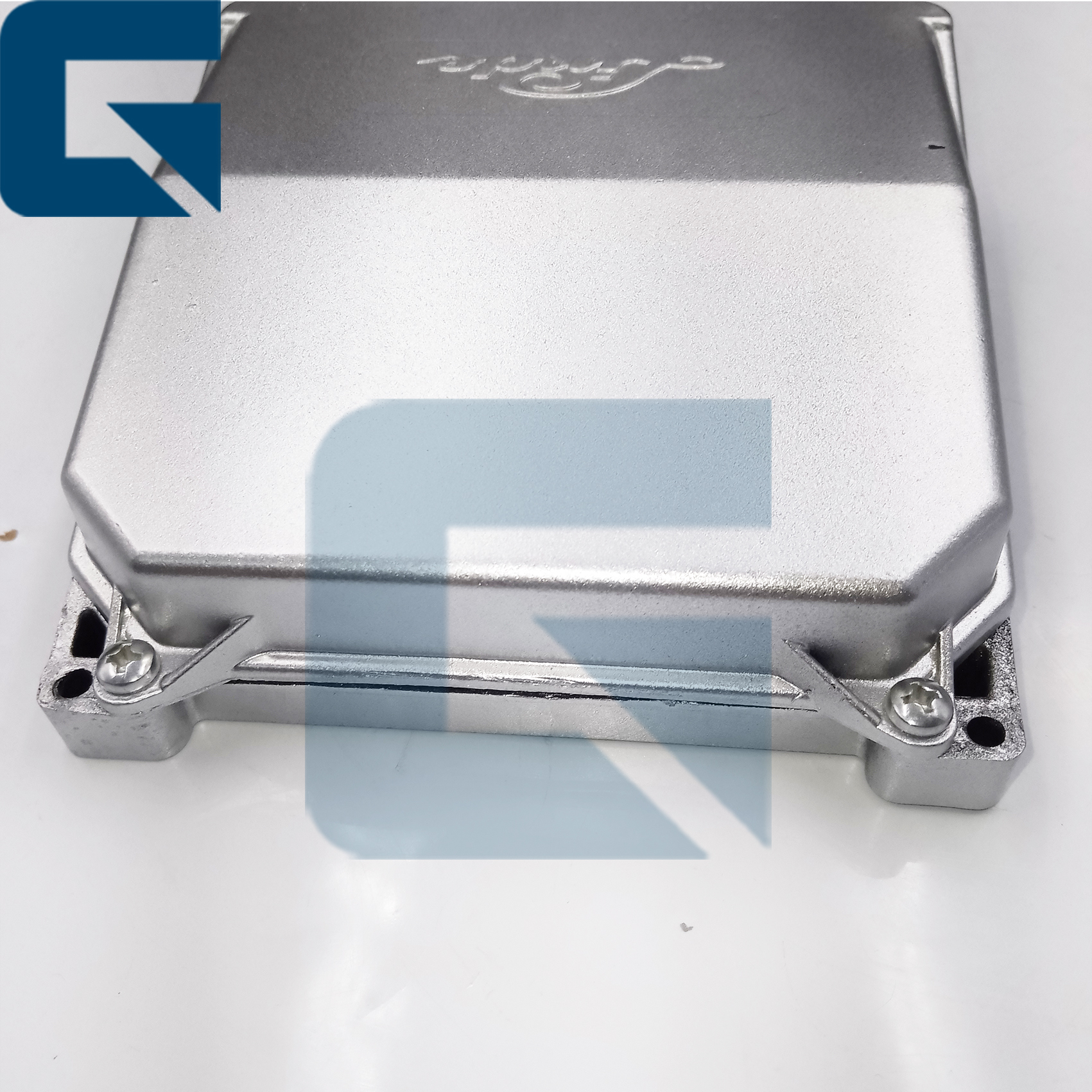

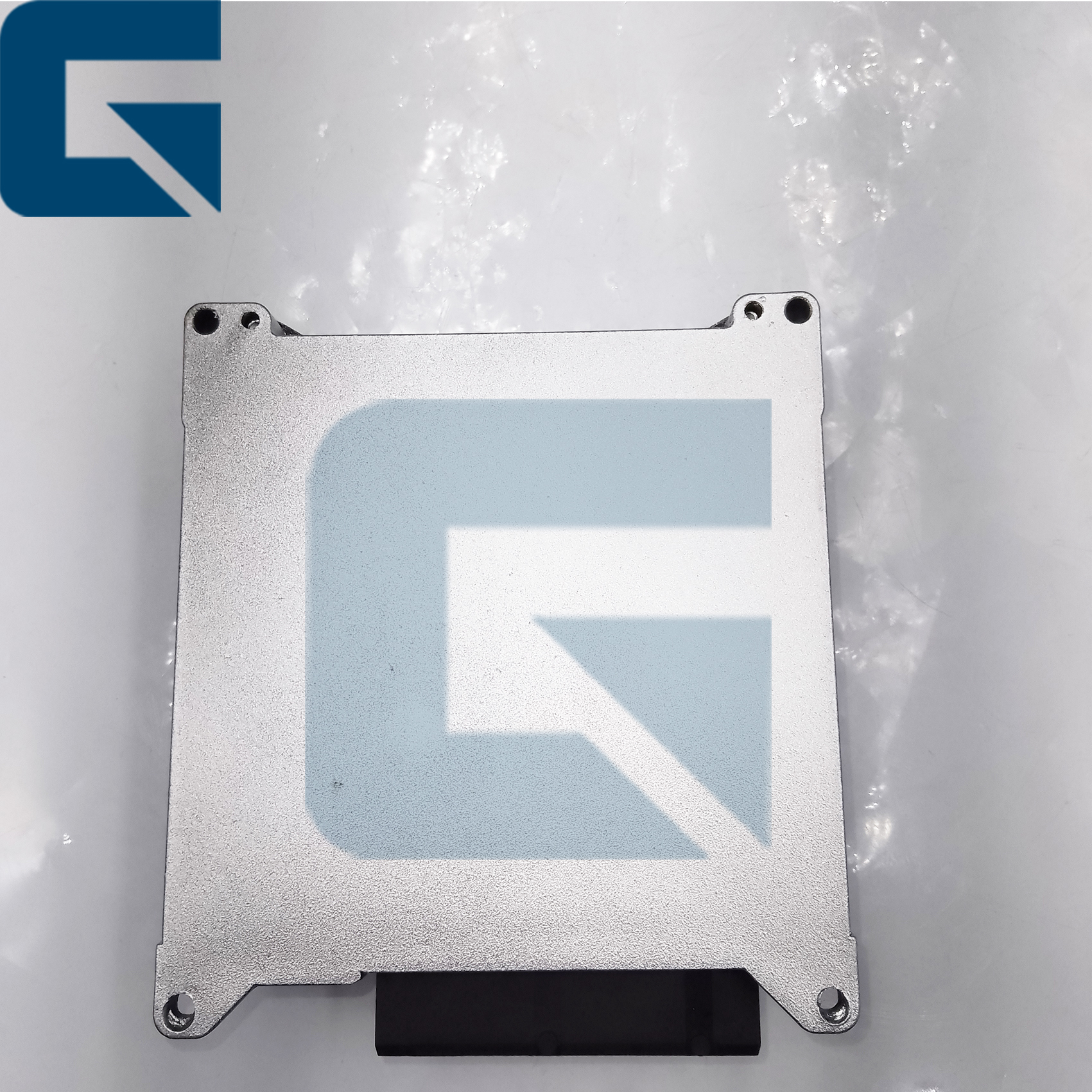

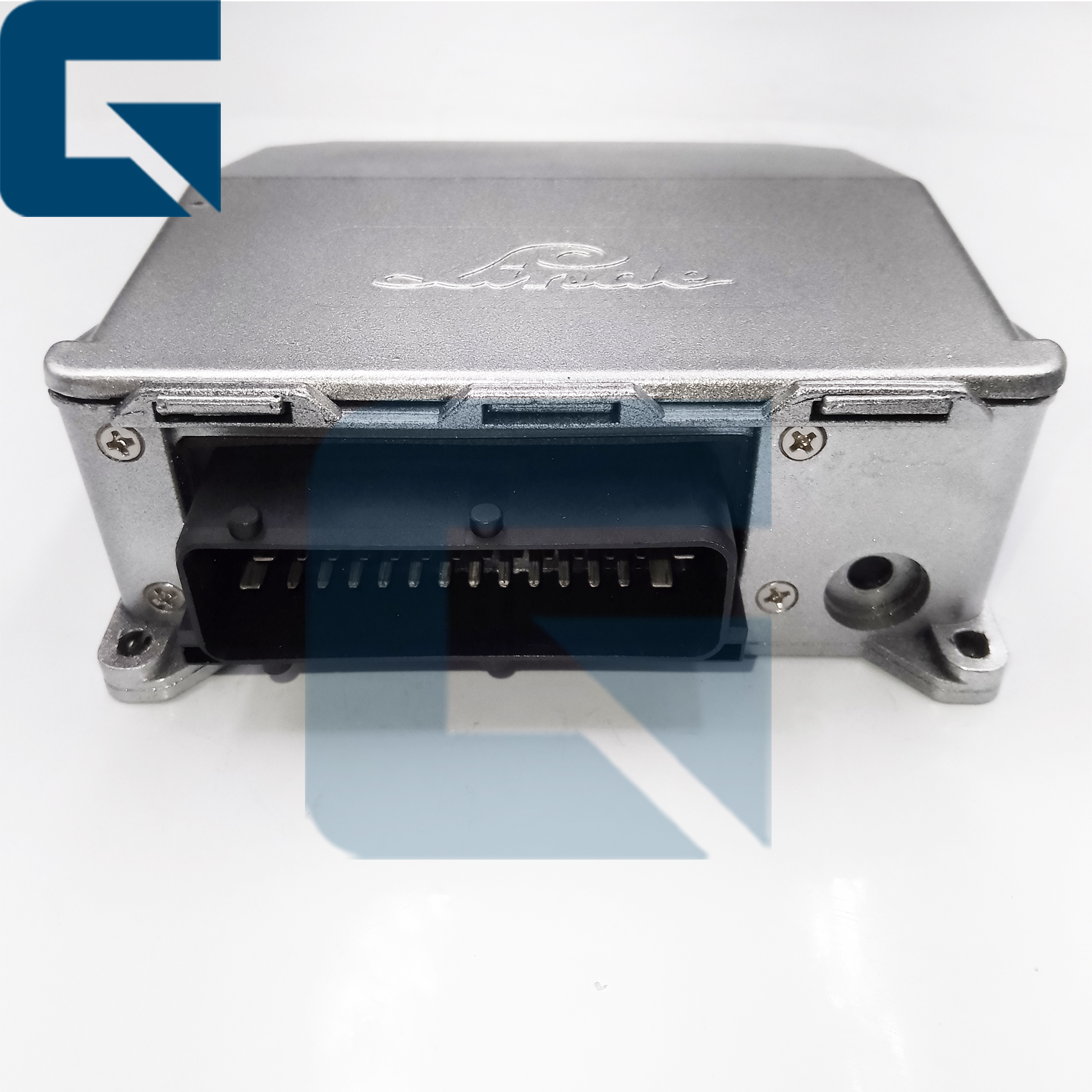

Product Images

Frequently Asked Questions

Installation Time Requirements

Physical Installation: 15-30 minutes. The unit is typically secured by 4 bolts on the cool side of the engine.
Programming & Testing: 30-60 minutes.

Pro Tip: If the ECM is pre-programmed by us based on your machine's serial number, it is essentially "Plug & Play." If not, you will need an ET (Electronic Technician) tool to flash the software, which takes additional time. We recommend professional installation to ensure correct parameter synchronization.

ECM Fault Diagnosis

The ET diagnostic tool cannot communicate with the ECM, or it displays a "Module Not Responding" error. This is a critical sign of internal hardware failure.
Active fault codes related to internal memory (EEPROM) or voltage reference issues that persist after checking the wiring harness often indicate ECM failure.
Sudden engine stalling, severe power loss (Limp Mode), or persistent misfiring (missing injector driver signals) after sensors and harnesses have been ruled out.
Visible signs of overheating (burning smell), water ingress, corrosion, or broken pins on the connector headers.

Payment & Order Information

Payment Methods: T/T, L/C, PayPal, etc.
Stock Availability: Rich stock available.
Order Tracking: When the goods ship, we will share the tracking number. For sea or air freight, we can provide the bill of lading.

Step-by-Step Testing Guide

Important Note: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Prepare: Ensure the excavator is turned off and safely secured. Disconnect the battery to avoid electrical accidents.
Inspect: Check the ECU for physical damage or loose connections.
Connect Diagnostic Tool: Use a diagnostic tool recommended by the excavator's manufacturer. Connect it to the ECU according to the tool's instructions.
Read Codes: Use the diagnostic tool to read any error codes (DTCs) stored in the ECU. These codes indicate potential problems with the ECU or connected systems.
Check Live Data: View live data parameters such as sensor readings and system voltages. Ensure they are within normal ranges.
Functional Tests: If possible, perform tests to activate components or simulate sensor inputs. Verify that the ECU responds correctly without delays or errors.
Reset (if needed): Reset the ECU if recommended by the manufacturer, especially after repairs or replacements.
Document: Keep a record of all tests, codes, and results for future reference.

Quick Diagnostic Checklist

Before replacing the ECM, always check the fuses, main relays, and ground connections. In many cases, a faulty ground wire or low battery voltage mimics an ECM failure.

Company Profile

Product Exhibition

Packaging & Shipping

Produit Tag:

Lieu d'origine:	Chine
Nom de marque:	Jiajue
Numéro de modèle:	EW160B EW180B

Quantité de commande min:	1 pièce
Prix:	$600/pc
Détails d'emballage:	Le contrôleur VOE14390248 ECU 14390248 pour pelle EW160B EW180B est emballé dans un emballage standa
Délai de livraison:	1-5 jours de travail
Conditions de paiement:	LC, D/A, D/P, T/T, Western Union,
Capacité d'approvisionnement:	100 pièces/mois
